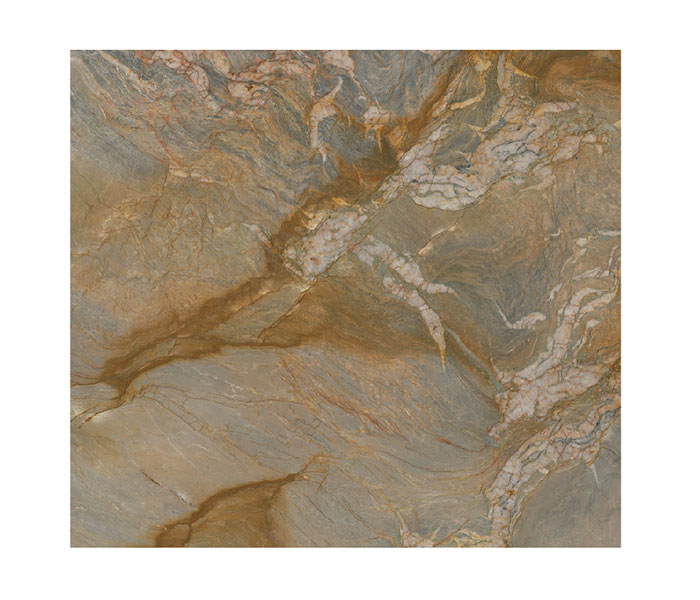

Coating board
Coating board
1. Al fire base material, fire prevention performance is strong
2. Natural green environmental protection material
3. Wear resistant easy to clean
4. The corrosion of acid and alkali resistance, organic solvents, disinfectant and necessities of pollution
5. The adornment of the superiority performance
6. Bibulous rate is low, has the ablity of waterproof, reslstant to moisture environment, durable, long service life

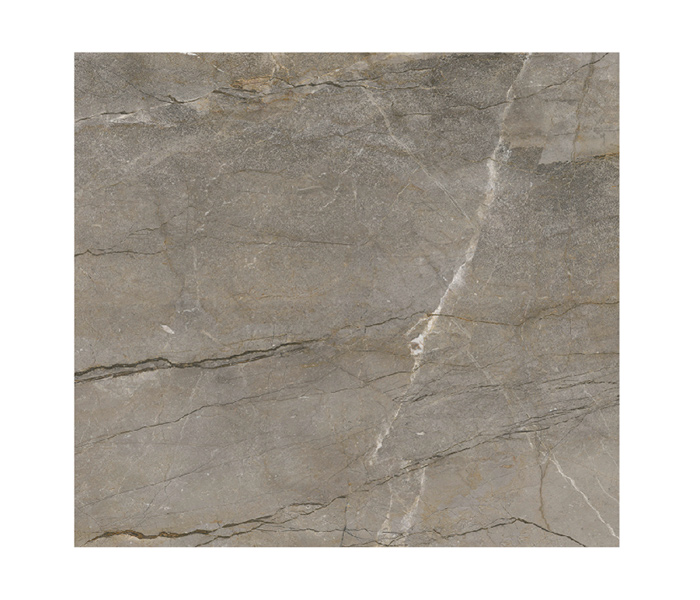

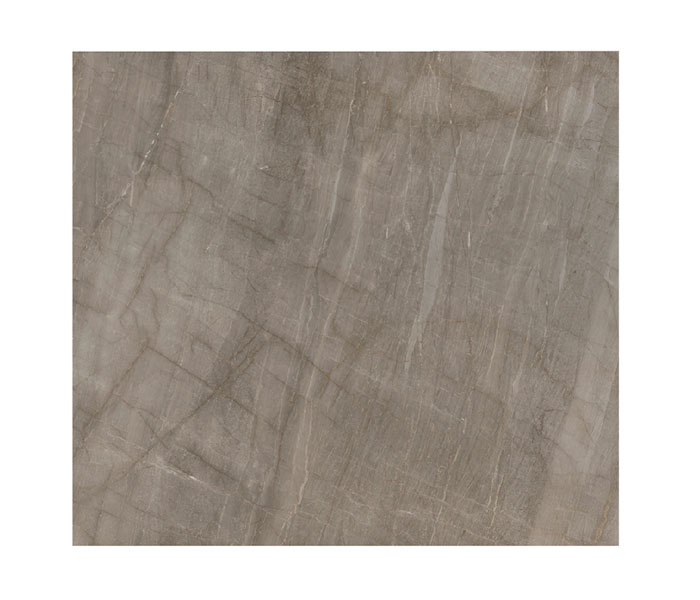

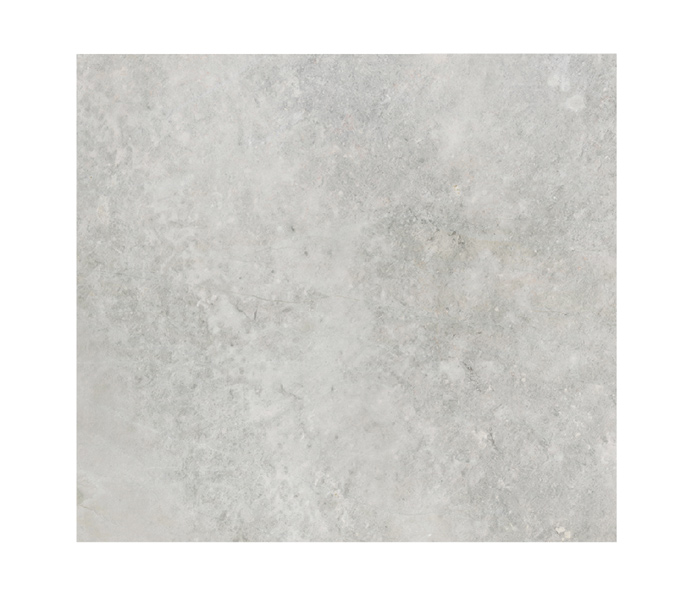

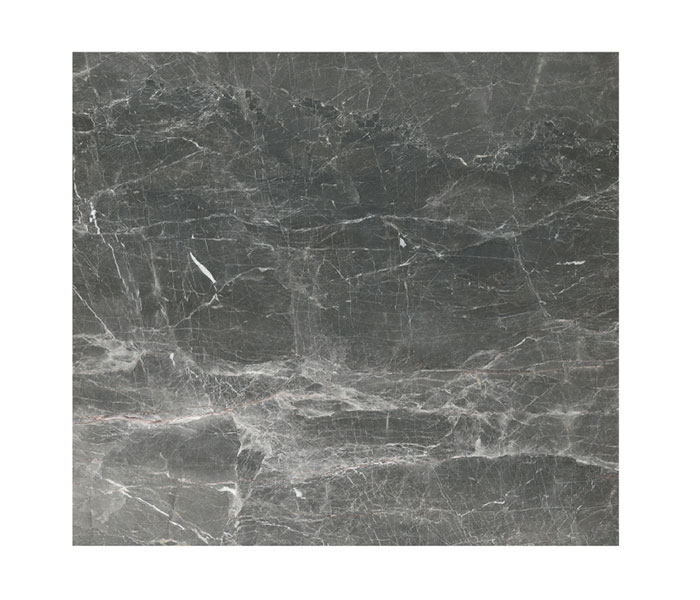

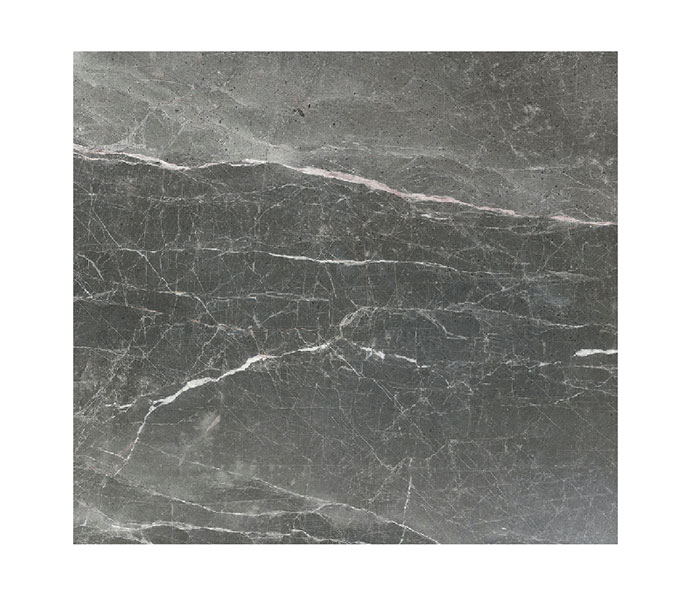

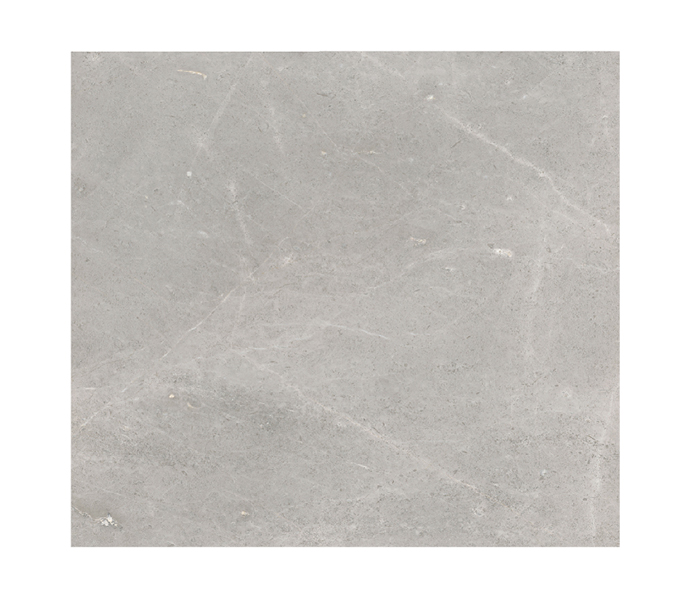

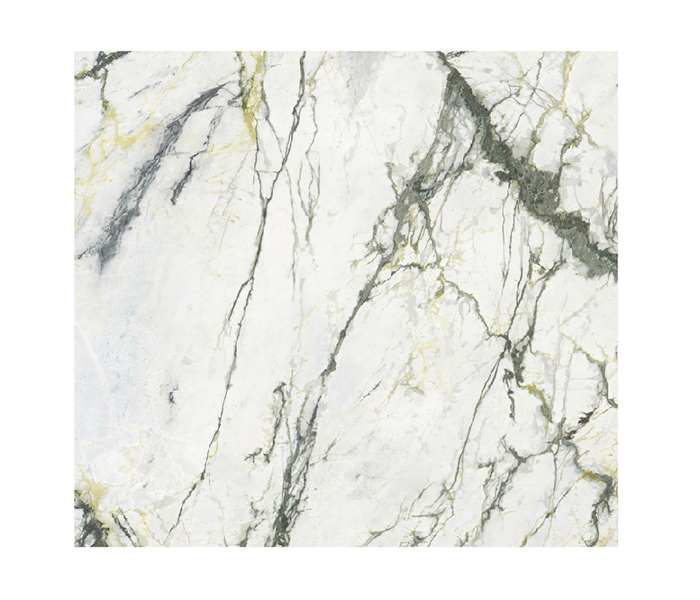

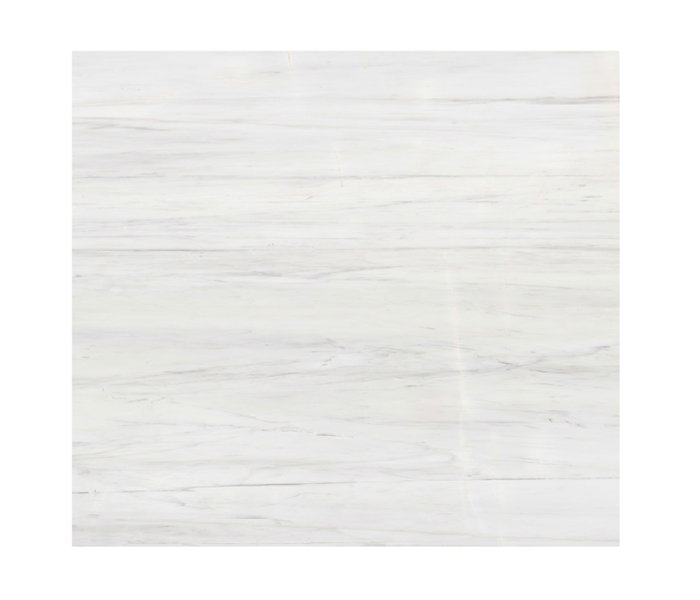

7. According to design custom color, design and color
8. Easy installation
Setting wall, entertainent venues, public places -personalized, high precision, integrated materials
Welcome to call0757-88879395， Consulting and ordering
Online consultationRelated products
No relevant information yet.
Product details
【Product parameters】
|
Specification |
Unit |
Performance |
|
Density |
g/cm³ |
1.4 ý1.6（+/-0.1g/cm³） |
|
Size |
mm |
2440×1220×6-20 |
|
Flexural Strength(Mpa) |
N/m㎡ |
≥13（water saturated condition） |
|
Moisture movement |
% |
≤0.25 |
|
Water Absorption |
% |
≤28 |
|
Heat conductivity |
W/m.k |
≤0.45 |
|
Impct resistance |
KJ/㎡ |
≥2.2 |
|
Screw pullout force |
N/nm |
≥90 |
|
Freezing and thawing |
|
No alteration nor de-lamination after 25 cycles of freezing and |
|
Asbestos content |
|
100% asbestos free,meets the standard of HBC223-2005 Lightweight Wall Flat Sheet |
|
Radioactivity |
Grade A,production and application is unrestricted,meets the requirement of GB6566-2010 Limit of Radionuclides in Building Materials |
|
|
Combustion performance |
Grade A1,according to GB8624-2012,The combustion performance classification for materials and products |
|
|
Non-permeability |
HOMSO PAINT BOARD is high density,even immer sed in water for few months,its dimension and quality are stable.Water and other liquids on the Unique water repellent protection surface can be flowed away immediately.The sheet is water proofing and will not or support fungal growth
|
|

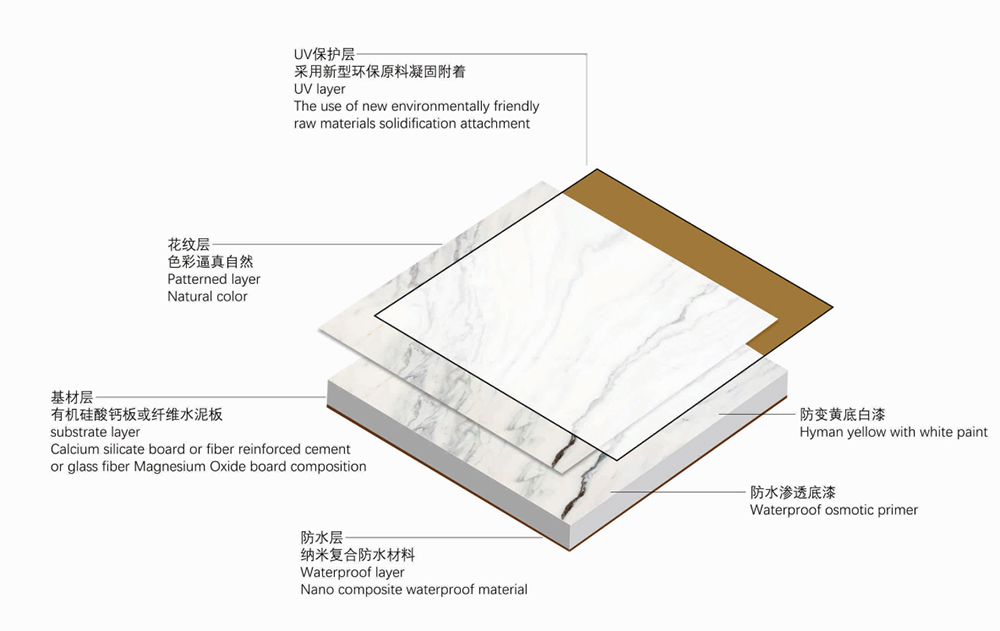

Structure Diagram
